Pre-processing

A common operation on time series is to pre-processes each series individually, e.g., normalizing each timestep or truncating multivariate time series to have uniform length, the preprocess-module implements a selection of common operations that are performed along the time dimension (i.e., along the last dimension of the time series array). Currently, Wildboar supports the following operations:

standardize and Truncate

Standardize each time step to have zero mean and unit variance.

minmax_scale and MinMaxScale

Normalize each time step in a predefined range, by default between 0 and 1.

maxabs_scale and MaxAbsScale

Scale each time step by the maximum absolute value,

truncate and Truncate

Truncate each time series to have uniform length, i.e., to the length of the shortest time series.

interpolate and Interpolate

interpolate missing values using the specified method. Supported methods are: “linear”, “cubic”, and “pchip”. If scipy version 1.14 or above is installed, interpolate also supports “akima” and “makima”.

In contrast to feature-wise preprocessing, the preprocessing operations in the wildboar.datasets-module operate sample-wise and are state-less, i.e., we can reuse them for both the training and testing parts of our data. To simplify the application of preprocessing, the wildboar.datasets.load_dataset function accepts a preprocess parameter:

from wildboar.datasets import load_dataset
from wildboar.datasets import preprocess

x, y = load_dataset("GunPoint", preprocess=preprocess.minmax_scale)

The preprocess parameters accept both a function that expects a ndarray and returns a new preprocessed ndarray or a named preprocessor as a string. The names are the same as the function names enumerated above. For example, the previous code snippet could be rewritten as:

x, y = load_dataset("GunPoint", preprocess="minmax_scale")
x_orig, _ = load_dataset("GunPoint")

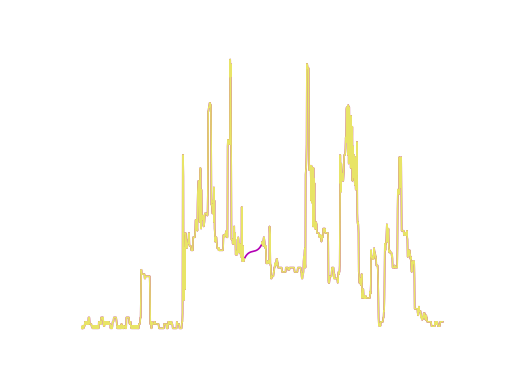

plt.plot(x[0], label="minmax")
plt.plot(x_orig[0], label="original")

Note

The following named preprocessing functions are supported:

• standardize or normalize

• minmax_scale

• maxabs_scale

• truncate

• interpolate

• interpolate-cubic

• interpolate-pchip

• interpolate-akima (if scipy version 1.14 or above)

• interpolate-makima (if scipy version 1.14 or above)

• downsample: reduce the number of time steps to sqrt(n_timestep)

• downsample-25: reduce the number of time steps to 25%

• downsample-50: reduce the number of time steps to 50%

We can also provide multiple preprocessing directives as a list:

X, y = load_dataset("GunPoint", preprocess=["downsample-25", "standardize"])
X.shape

(200, 38)

A crude way of dealing with time series of unequal length is to truncate longer time series to the length of the shortest time series. In Wildboar, we can use truncate to accomplish this.

In Wildboar, all time series datasets are traditional Numpy-arrays with a specified shape, i.e., (n_samples, n_dims, n_timesteps). To support time series of unequal length, we use a specific value to denote end-of-sequence (EOS). We can get the EOS value from wildboar.eos, and use wildboar.utils.variable_len.is_end_of_series to check for this value, and get the length of each series:

from wildboar.utils.variable_len import is_end_of_series

is_end_of_series(x).argmax(axis=-1)

array([0, 0, 0, ..., 0, 0, 0], shape=(200,))

For example, we could use the following code to plot the length of each dimension of a multivariate time series:

import matplotlib.pyplot as plt

x, y = load_dataset("SpokenArabicDigits", repository="wildboar/ucrmts")
x = x[:25, :3]
eos = is_end_of_series(x).argmax(axis=-1)
fig, ax = plt.subplots(nrows=x.shape[1])
for dim in range(eos.shape[1]):
    eos[eos[:, dim] == 0] = x.shape[-1]  # if eos == n_timestep
    ax[dim].scatter(np.arange(eos.shape[0]), eos[:, dim], marker="x")
    ax[dim].set_ylabel(f"dim {dim}")

Truncating the time series to the shortest dimension (in the example this is 26 time steps), using preprocess.truncate(x), results in a figure similar to this:

Since many algorithms in Wildboar only support dimensions and samples of uniform length, we can preprocess the time series using the truncate function. One should note that truncating is very crude and result in data loss.

scikit-learn compatible transformers

All preprocessing functions are also available as scikit-learn compatible transformers.

For example, we can create a pipeline that truncates, standardizes, and interpolate missing values.
